RFID (radio frequency identification) is a form of wireless communication that incorporates the use of electromagnetic or electrostatic coupling in the radio frequency portion of the electromagnetic spectrum to uniquely identify an object, animal or person. It has become an essential technology in various industries, improving efficiency, security, and automation.
How Does RFID Definitions Work?

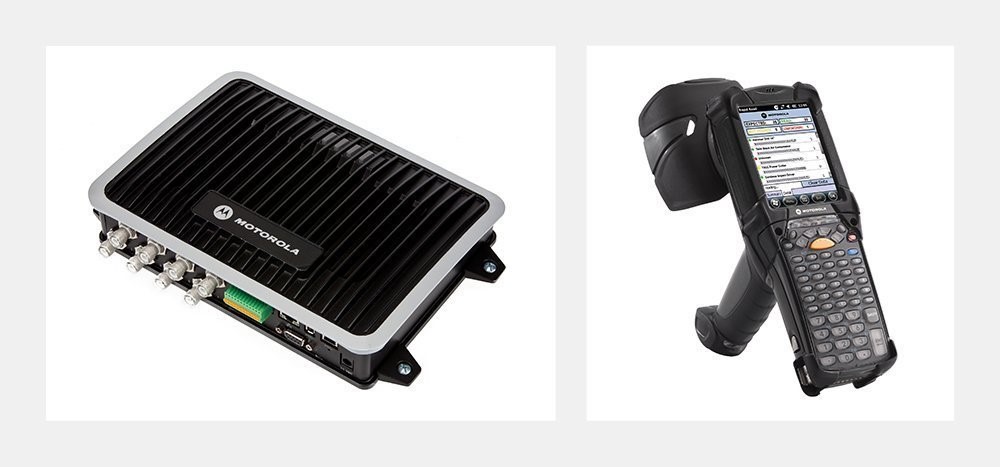

Each system features three parts; it consists of a scanning antenna, a transceiver, and a transponder. The RFID definitions reader or interrogator is the antenna and the transceiver combined. Fixed readers come in two types -- active RFID or passive RFID. Now a network-connected device, portable or permanently attached, RFID definitions reader potentiates the tag using signals delivered via radio waves. When activated, the tag sends a wave back to the antennas, which converts it into data.
The transponder resides within the RFID definitions tag itself. This is a variable range influenced by things such as the type of RFID definitions tag itself, type of RFID definitions reader, the RFID definitions frequency, and nearby interference from other RFID definitions tags and readers. Tags powered by stronger sources can also be read from longer ranges. Tracking items wirelessly can be done thanks to RFID, as it has revolutionized logistics and retail industries.
What Are RFID Definitions Tags and Smart Labels?
RFID definitions tags are made up of an integrated circuit (IC), an antenna, and a substrate. The part of an RFID definitions tag that encodes identifying information is called the RFID definitions inlay.
Types of RFID Definitions Tags:
- Active RFID definitions: An active RFID definitions tag with its power supply, typically a battery.
- Passive RFID definitions: The existing of passive RFID definitions tag gets the energy from reading antenna which creates a Terrain current in the antenna of RFID definitions tag.
- Semi-passive RFID definitions tags: The battery runs the circuit while the communication is powered by the RFID definitions reader.
They are nothing more than basic RFID definition tags. These are RFID tags with a definition tag embedded into an adhesive label with a barcode. They are also used by both RFID formats and barcode readers. Smart labels, on the other hand, can be printed on-demand using desktop printers, whereas RFID definitions tags need sophisticated machinery and equipment.
What Are the Types of RFID Definitions Systems?

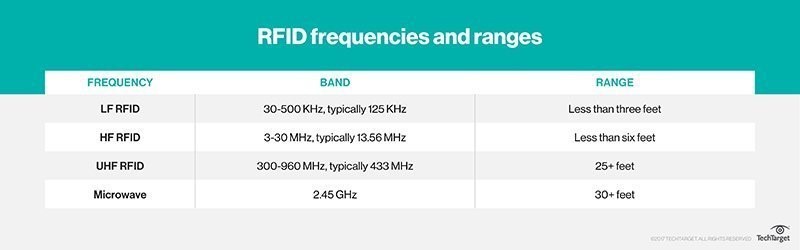

There are three main types of RFID systems: low-frequency (LF), high-frequency (HF), and ultra-high-frequency (UHF). Microwave RFID definitions are also available. Frequencies vary greatly by country and region.
Types of RFID Definitions Systems:
RFID technology operates across different frequency ranges, each suited for specific applications based on read range, data transfer speed, and environmental factors.
- Low-Frequency (LF) Rdefinition Systems: Operating between 30 KHz and 500 KHz (typically, 125 KHz). LF systems have a short transmission range, usually from a few inches to under six feet. It is commonly used for animal tracking, access control, and industrial automation.
- High-Frequency (HF) RFID Definitions Systems: Functioning between 3 MHz and 30 MHz (typically 13.56 MHz), HF RFID definitions provide a read range from a few inches to several feet. It is widely used in contactless payment systems, ticketing, and library management.
- Ultra-High-Frequency (UHF) RFID Definitions Systems: Operating between 300 MHz and 960 MHz (typically 433 MHz), UHF RFID definitions can be read from over 25 feet away, making it ideal for supply chain management, retail inventory tracking, and logistics.
- Microwave RFID Definitions Systems: Running at 2.45 GHz, microwave RFID definitions offer an extended read range of over 30 feet, often used in toll collection, fleet management, and high-speed tracking applications.
RFID Definitions, Applications, and Use Cases
Some common uses for RFID definitions applications include:
- Pet and livestock tracking
- Inventory management
- Asset tracking and equipment tracking
- Inventory control
- Cargo and supply chain logistics
- Vehicle tracking
- Customer service and loss control
- Improved visibility and distribution in the supply chain
- Access control in security situations
- Shipping
- Healthcare
- Manufacturing
- Retail sales
- Tap-and-go credit card payments
- Waste management
- Library book tracking
- Event ticketing and authentication
The ability of RFID to enable real-time tracking and automation makes it valuable in industries where efficiency and security are critical.
RFID Definitions vs. Barcodes
Using RFID definitions as an alternative for barcodes is increasing in use. RFID definitions and barcode technologies are used in similar ways to track inventory, but there are some important differences between them.
| RFID Tags | Barcodes |
|---|---|
| Can identify individual objects without a direct line of sight. | Direct line of sight required for scanning. |
| Can scan items from inches to feet away, depending on type of tag and reader. | Require closer proximity for scanning. |
| Data can be updated in real time. | Data is read-only and can't be changed. |
| Require a power source. | No power source needed. |
| Read time is less than 100 milliseconds per tag. | Read time is half a second or more per tag. |
| Contain a sensor attached to an antenna, often contained in a plastic cover and more costly than barcodes. | Printed on the outside of an object and more subject to wear. |
Differences Between RFID Definitions and Barcodes
RFID technology offers several advantages over traditional barcodes, making it a preferred choice for modern tracking and automation systems:
- No Direct Line of Sight Required: RFID tags can be scanned without direct visibility, whereas barcodes need to be in line of sight for reading.
- Greater Scanning Range: RFID tags can be read from a much greater distance compared to barcodes, improving efficiency in large-scale operations.
- Real-Time Data Updates: RFID tags allow dynamic data modification, while barcodes store static information that cannot be changed.
- Power Requirement: Unlike barcodes, RFID systems require a power source, especially for active RFID tags that enable long-range communication.
Due to these advantages, many industries—including retail, logistics, and healthcare—are shifting from barcode-based tracking to RFID definitions for improved automation, accuracy, and operational efficiency.
RFID Definitions vs. NFC
Near-field communication (NFC) is a short-range, high-frequency wireless technology that enables seamless data exchange between devices. By integrating both a smart card and a reader interface into a single device, NFC facilitates secure and efficient communication.
Key Differences Between RFID and NFC:
- Communication Direction: RFID definition is typically uni-directional, while NFC supports bi-directional communication.
- Range: RFID can operate over distances of up to 100 meters, whereas NFC functions within a limited range of 0.2 meters.
- Frequencies: RFID operates across multiple frequency bands (LF, HF, UHF, Microwave), while NFC specifically operates at 13.56 MHz.
- Applications: NFC is widely used for mobile payments and secure transactions, whereas RFID is commonly found in industrial tracking, retail management, and logistics.
| Radio Frequency ID | Near-field Communication |
|---|---|
| Uni-directional | Bi-directional |
| Range up to 100 m | Range less than 0.2 m |
| LF/HF/UHF/Microwave | 13.56 MHz |
| Continuous sampling | No continuous sampling |
| Bit rate varies with frequency | Up to 424 Kbps |
| Power rate varies with frequency | <15 milliamperes |
RFID Definitions Challenges
While RFID Definition generation enhances performance in tracking and facts collection, it faces primary challenges that may impact performance:
- Reader Collision: When multiple RFID readers function inside the same region, their signals can intervene with each other, leading to information transmission errors. This can disrupt correct monitoring and identification approaches.
- Tag Collision: When numerous RFID tags respond to a reader simultaneously, the device may battle to differentiate among them, causing statistics confusion and misreads. To cope with those issues, corporations can implement anti-collision protocols that help control more than one signal efficiently.
RFID Definitions of Security and Privacy
A common RFID definition security or privacy concern is that RFID definitions tag data can be read by unauthorized individuals using compatible readers. To address this, security measures such as encryption, authentication, and anti-skimming technology have been implemented in sensitive applications such as passports and payment cards.
RFID Definitions Standards
Many guidelines and specifications control RFID technology to ensure spontaneous integration and safety in various applications. Organizations of the main standards include:
- Organization for International Standardization (ISO): Data establishes global RFID standards for frequencies, frequencies and communication protocols.
- Electronics Product Code Global Included (EPCGLOBAL): Develops standards for supply chain and inventory tracking, ensuring stability in product identification.
- International Electrotechnical Commission (IEC): Focuses on RFID system performance, electrical compatibility, and safety regulations.
These standards promote interoperability, enhance security, and enable the efficient deployment of RFID solutions across industries such as retail, healthcare, logistics, and manufacturing.
Next-generation RFID Definitions Use
It has been common in recent years for RFID systems to work in tandem with the Internet of Things (IoT) due to the prominent role RFID systems are taking in the implementation and growth of IoT applications. RFID can be combined with smart sensors and GPS technology to allow those businesses to wirelessly transmit key information in real time, including temperature, movement, and location.
Together, they add to automation, enhance asset tracking, and make smarter decisions in every domain from supply chain improvement to meeting patient needs, logistics, and beyond. As utilities continue to evolve within utility IoT ecosystems, RFID paves the way for promising new trends such as efficient and connected operations.
Conclusion
Learn the Latest Technology News RFID Definitions Technology has Changed the Way We Identify and Track Items in Different Industries. With IoT applications growing the popularity of RFID technology, it is more versatile with increased sensor integration and ability for automation & real-time data insights.
As a new approach to work, the astounding industrial potential of operational performance and the visibility of site assets, along with the absolute minimization of human error, has led this solution to change the fate of enterprises on a global scale. Automation across many industries is here to stay, and RFID will enable smarter supply chains and connected ecosystems. Furthermore, it will enable the growth of a large number of innovative technologies like ultra-high-frequency (UHF) RFID definitions and cloud-based tracking systems. However, security and privacy issues should be dealt with to ensure wider acceptance and safe implementation. Ensuring that data is secure and trusted with RFID definition capabilities will require enhanced encryption, authentication protocols, and regulatory measures.
